AUDIO EXTENDER KIT
Quick facts
- Supports
- Supports balanced audio extension over twisted pair
- Includes
- Includes analog audio transmitter and receiver kit
- Features
- Supports long-distance room audio installation
- Sample rate
- TOSLINK:48k/96k/192k 16bit/18bit/24bit COAX: 48k/96k/192k 16bit/18bit/24bit
- Outputs
- (1) TP OUT; (1) TOSLINK,(1) COAX,(1) L+R (RCA)

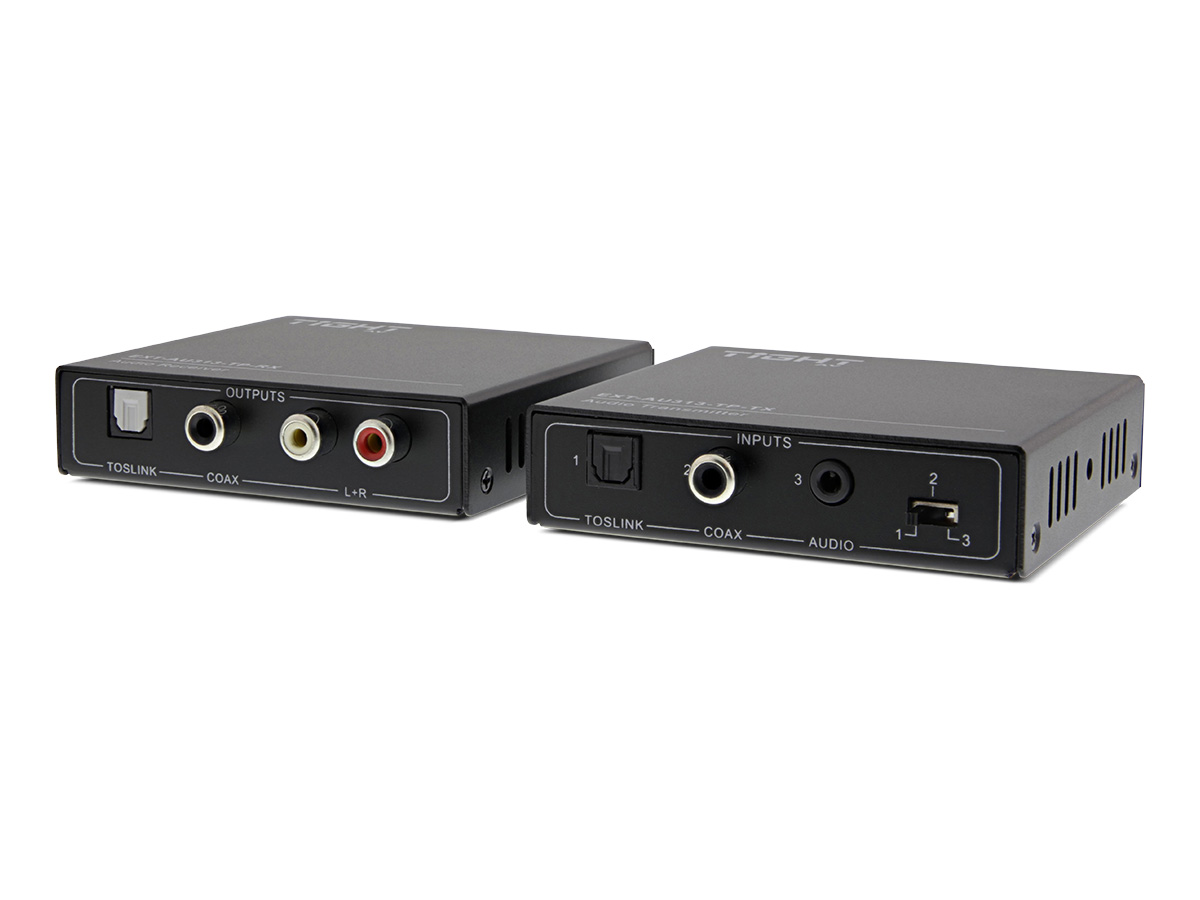

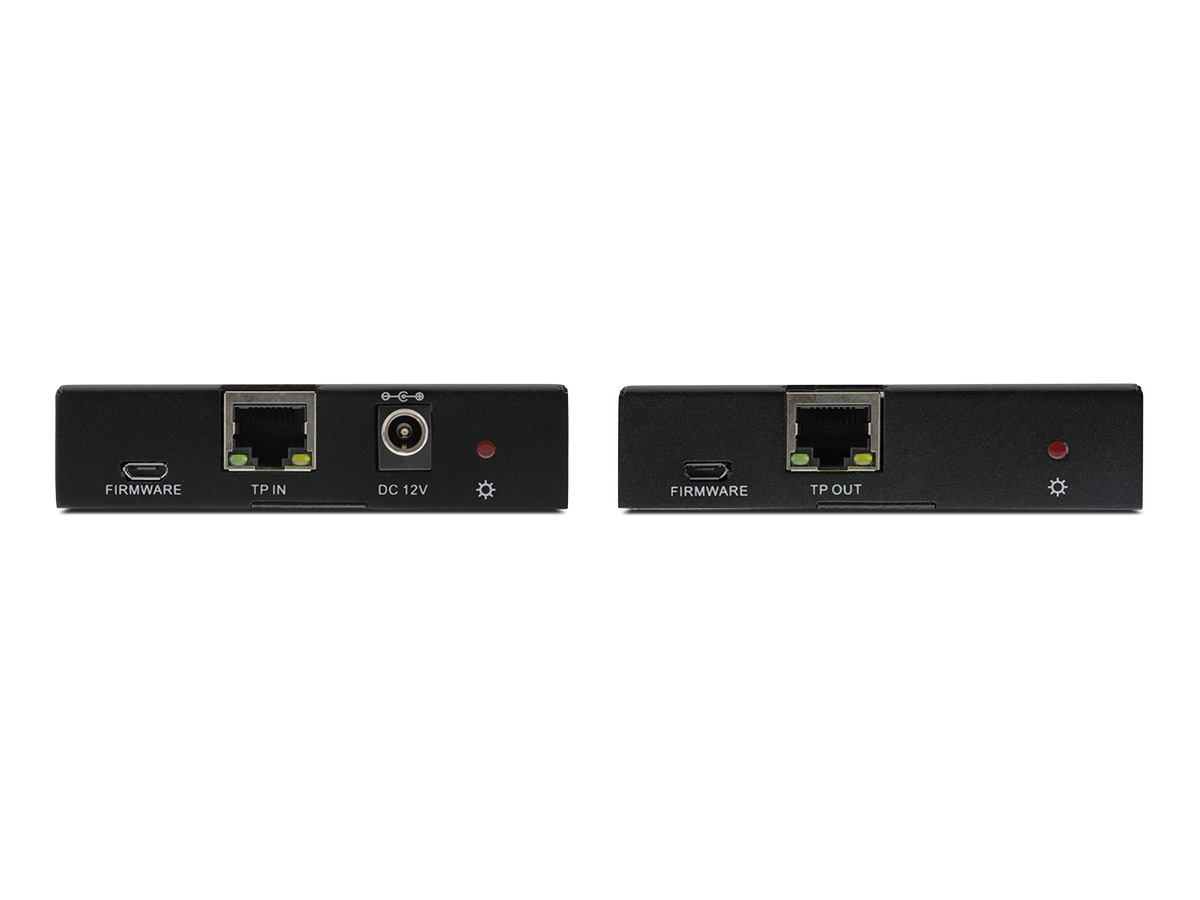

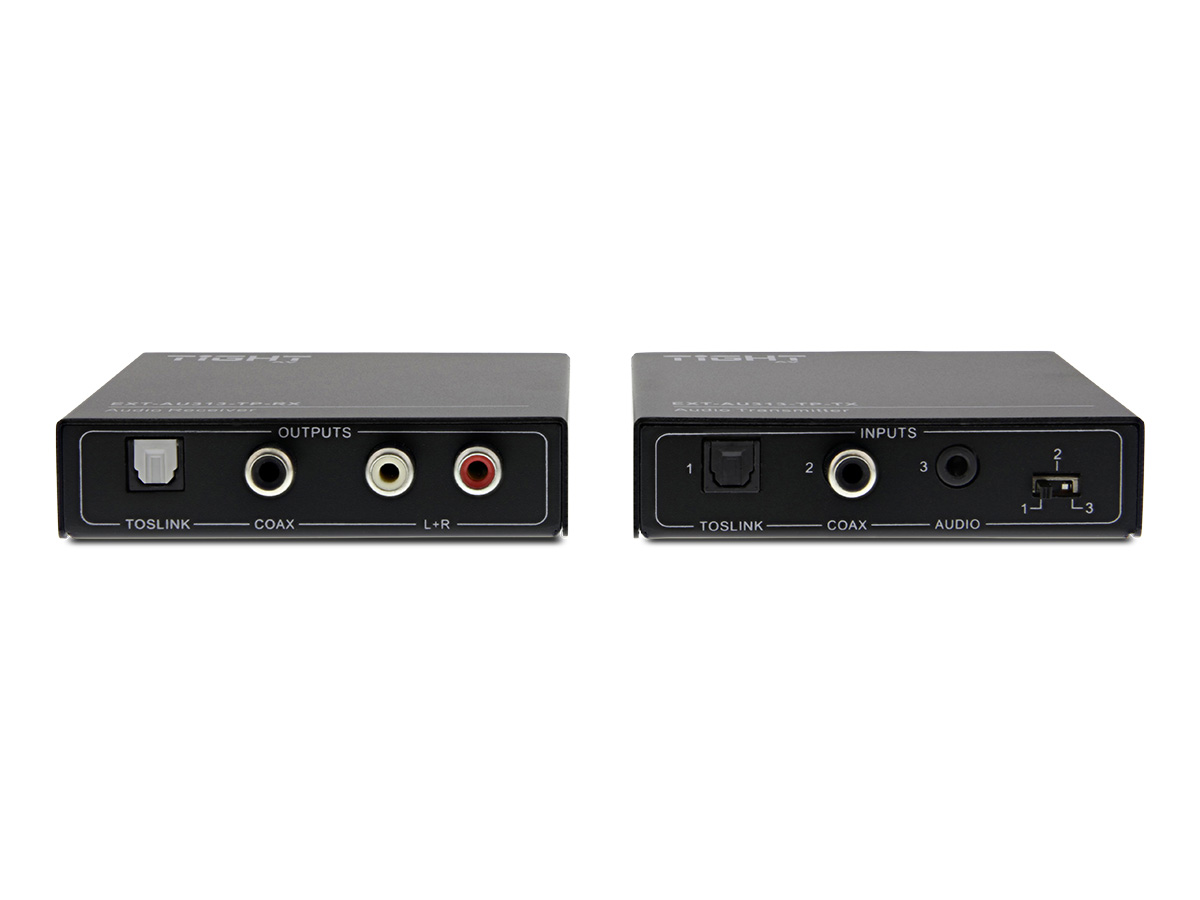

The EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.
KEY FEATURES:
• Three selectable audio inputs: Optical, Coax and Analog Stereo.
• Audio will be outputted simultaneous to the three different outputs: Optical, Coax and Analog Stereo.
• Convert audio signals from digital into analog, or analog into digital.
• Supply power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
• The transmission distance of analog stereo audio can up to 170 m, and the digital Optical/Coax audio up to 290m over an CATx cable.
