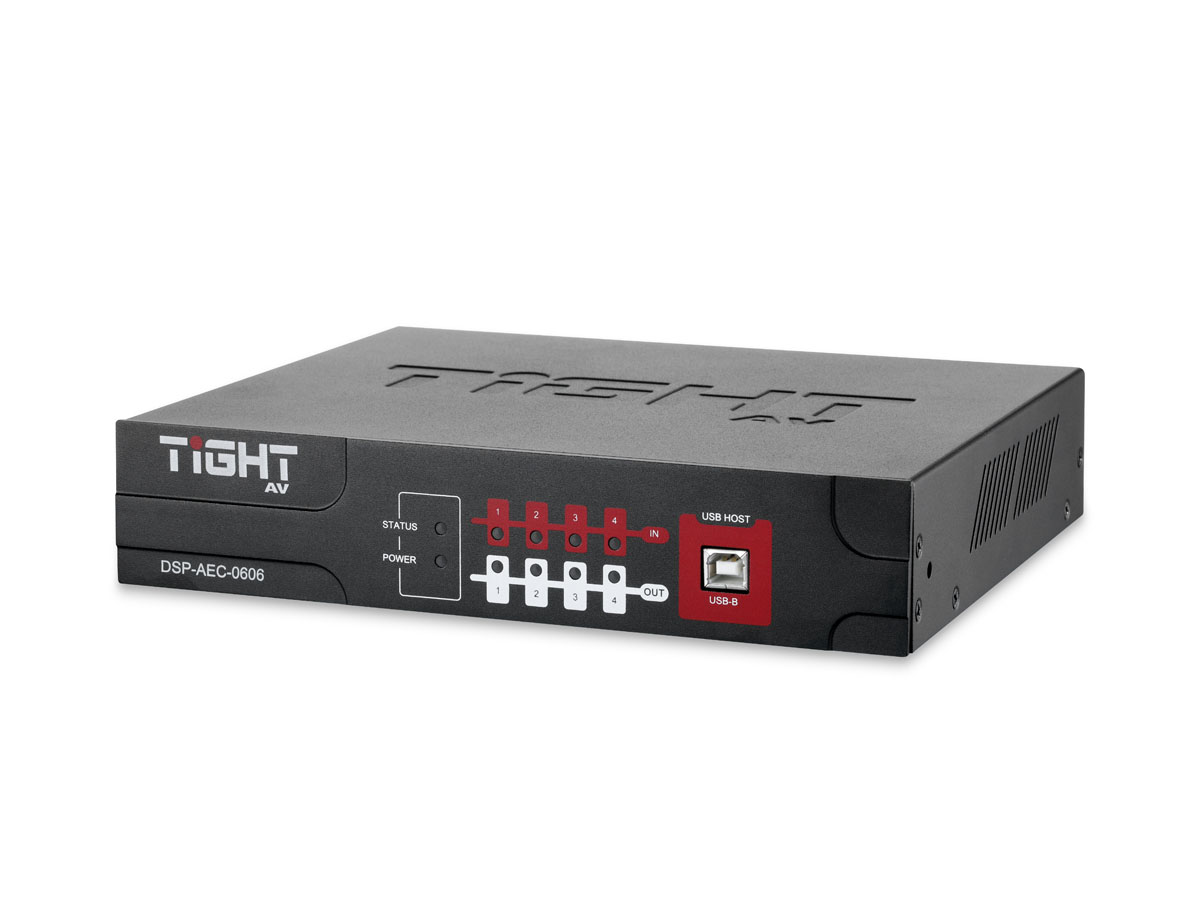

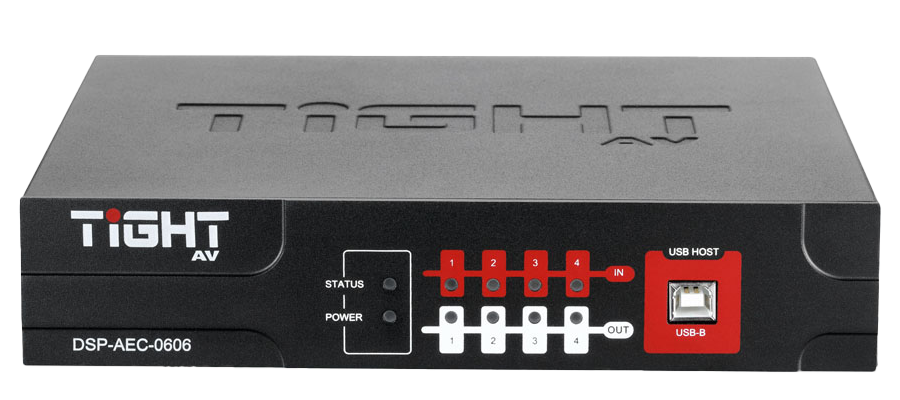

DSP-AEC-0606 | 6x6 DSP

Small-format, cost-efficient DSP for smaller installations.

Need a small-format, cost-efficient, no-nonsense DSP for those lighter installations? Our DSP-AEC-0606 should have you covered! Featuring 4x4 channels of balanced audio, plus a 2x2 USB interface for computer recording and playback, the 0606 should be a perfect fit for the job.

For those of you familiar with our DSP-AEC-1010-DA, the 0606 is basically the same model but without the 4x4 Dante connectivity. This leaves the 0606 with the following features:

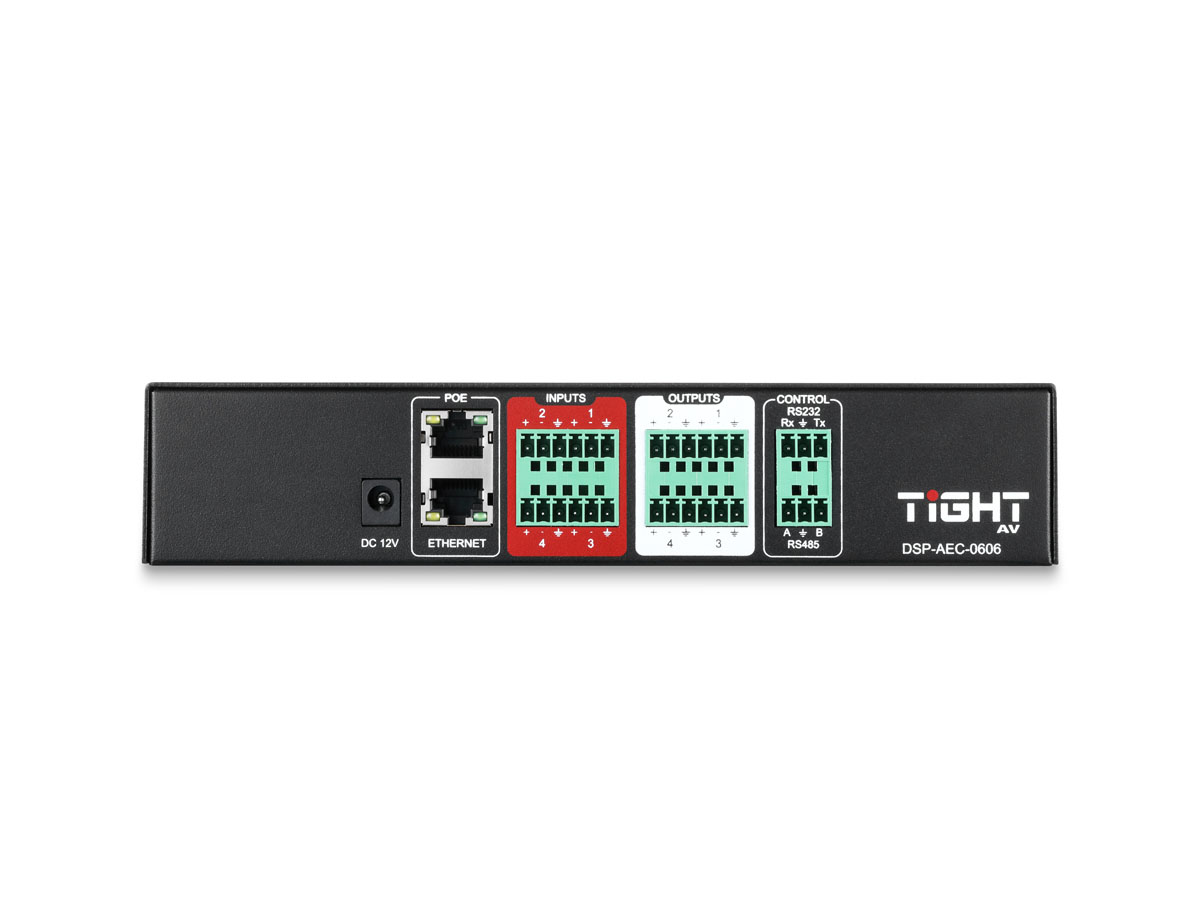

- 4 x balanced analog in and out, with integrated mic pre and +48V
- 2x2 USB (with processing) for recording and playback
- RS232 and RS485 control ports
- Dual Ethernet with PoE capability

As the name suggests, the DSP-AEC-0606 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, all easily configured and controlled from an intuitive GUI. As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.
